Gooseneck Half Tilt, Industrial 25,000LB

Price

$14,000.00

Looking for something custom?
Give us a call (336) 476-1285

DESCRIPTION

NEW PRODUCT!

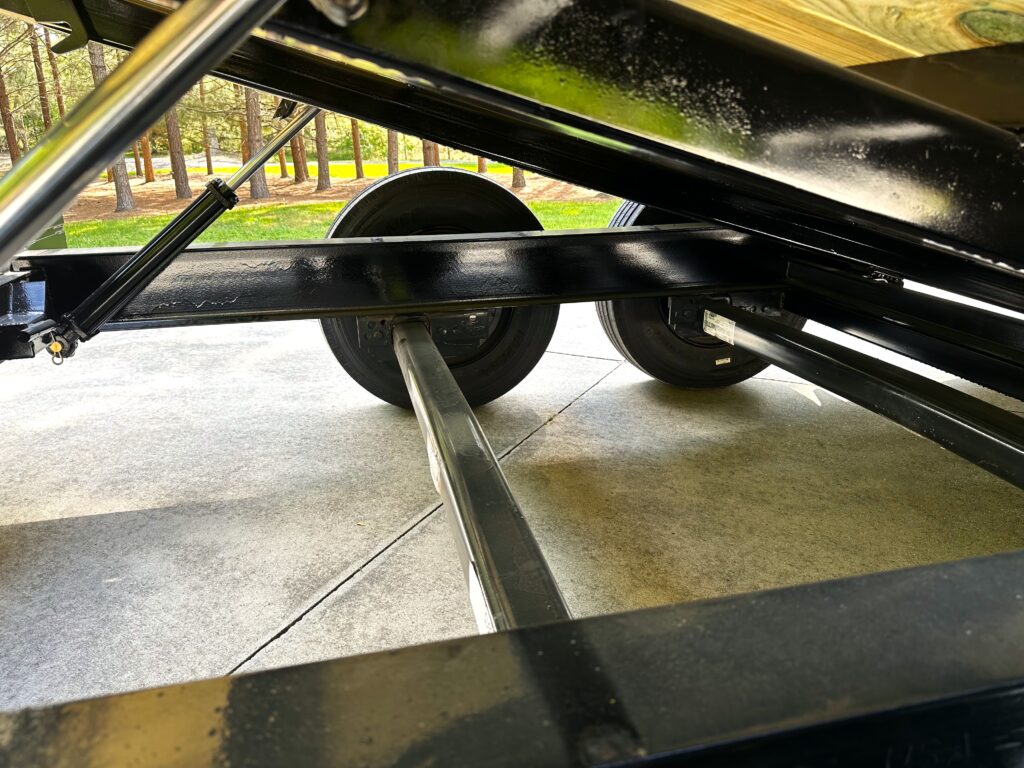

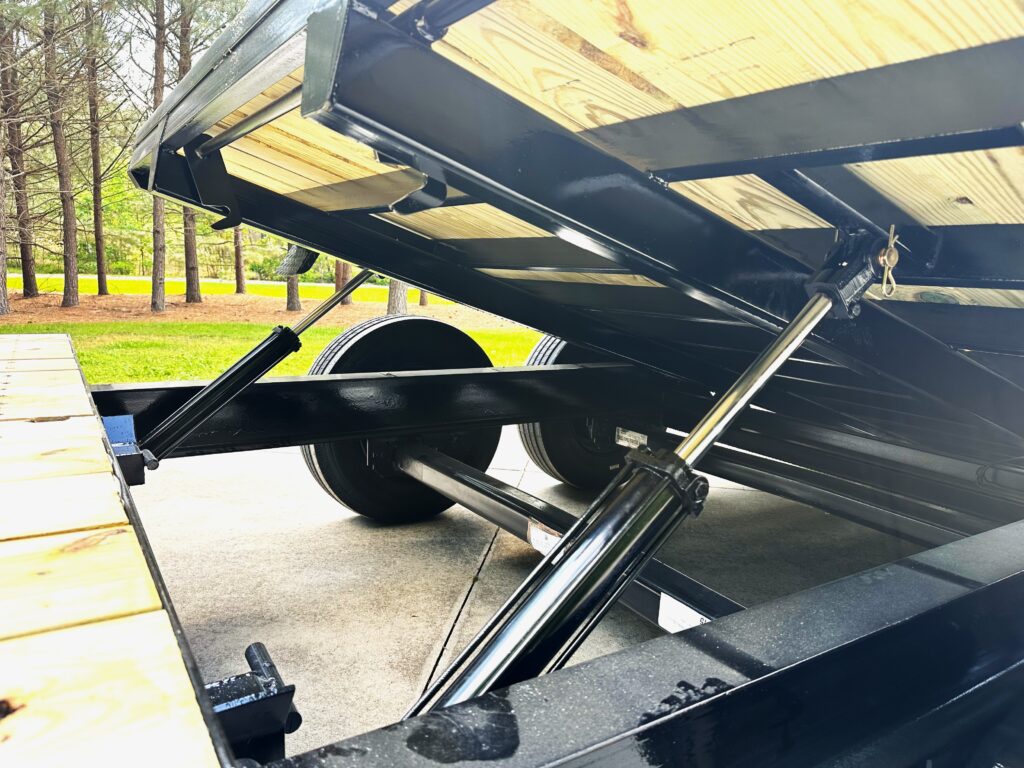

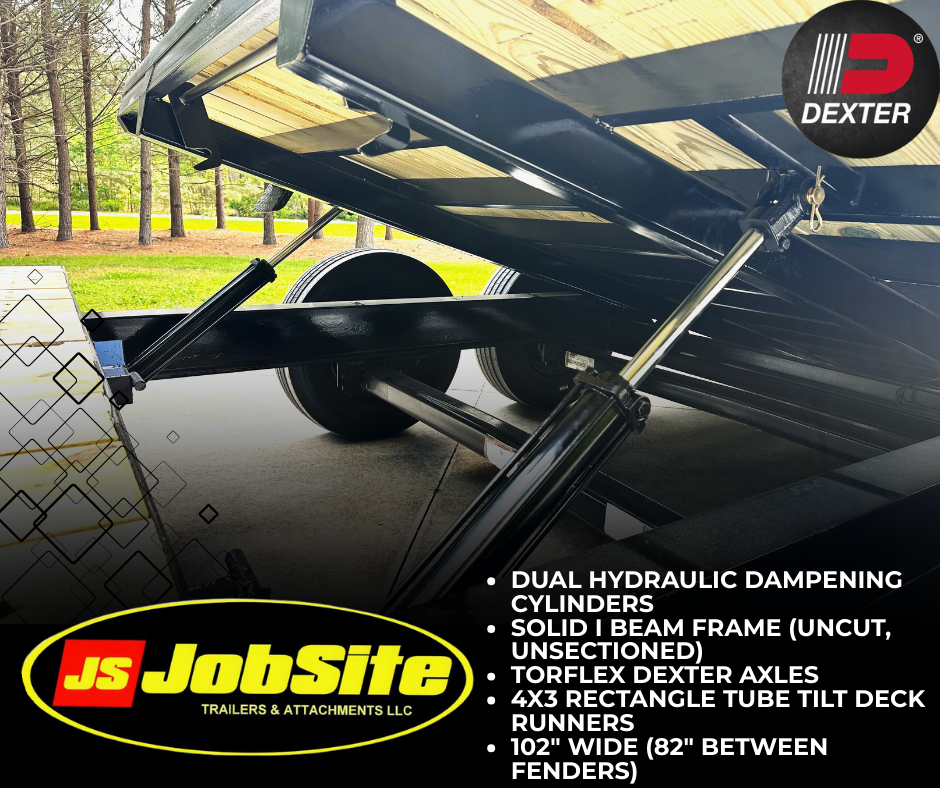

25K Gooseneck Tilt Deck Trailer!  Ramp up your abilities with this monster!  This new model has a 25,000lb GVWR (gross vehicle weight rating), gives around a 20,000lb-18,000lb payload capacity.  To handle the weight on the tilt deck portion of the trailer, we use 4×3 rectangle tube.  Assisting the tilt portion is two dampening cylinders ensuring a slow, smooth transition.  Main frame is a HD 8″ I-beam frame that has not been cut or sectioned over the axles like some of the competition has done.  This maintains the integrity of the I-beam construction from the mill.  Gooseneck portion is built from 12″ I-beam giving this trailer industry leading strength.   Running gear was a no brainer utilizing Dexter Torflex Axles giving you superior longevity of your axle life and ride quality.  At 102″ deck width in the front and rear, you rest assured, that your load is within legal limits and secured!

Additional options and add-ons are available.

  • Electric hydraulic pump for power tilt operation
  • Hydraulic Jack (Electric pump required)
  • Dual Hydraulic Jacks (Electric pump required)
  • Color options (call for current availability)
  • Winch mount

Don’t see what your looking for?  Let us know how we can help you!

Call our sales office today at: 336-476-1285

SPECS

Model Number GHTI10
Frame Material I-BEAM
Frame Size 8"
Neck Material I-BEAM
Deck WOOD
Lights FLUSH MOUNT LED
Jack 12K Drop Foot Jack
Coupler Type GOOSENECK
Coupler Size 2 5/16THS"
Axle 10K
Trailer Width 102
Trailer Fenders SQUARE DP TANDEM
Idler / Braking BRAKING
Single/Double Brake DOUBLE
GVWR 25,000LBS
GAWR 10,000LB


Weight Specs based on a 26′ deck length.  Other lengths, options, upgrades, and materials will change weight variables.

  • Over all Trailer Weight: approx. 6200 lbs
  • Tongue Weight: approx. 1400 lbs
  • Total Approximate Payload: approx. 18,800 lbs



SHIPPING

If item is in inventory it is shipped within 2 business days otherwise it is shipped within 2-3 weeks, Call for availability: (336) 476-1285

Pick up is at our Lexington, NC location and we will load your attachment.

$14,000.00

Call for shipping details.

Part Number: N/A
