Drilling Drive for Skid Steer

Drilling Drives for Skid Steer – 2.5T – 3.8T

Price

$2,470.00 – $3,510.00

Questions? Give us a call (336) 476-1285

DESCRIPTION

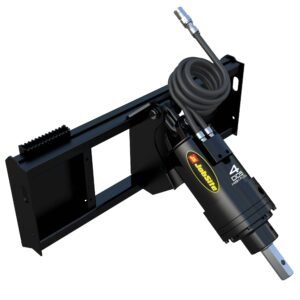

Drilling Drives for Skid Steer Loaders 2.5ton to 3.8ton   (5,500 lbs – 8,400 lbs)

Jobsite’s drilling drives for skid steer loaders are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Manufactured and assembled using only the highest grade materials and strictest quality control.
Fitted with Eaton bell motors and input housing, the design allows the gearbox to go down the hole to maximize drilling depth without extensions, eliminating downtime and minimizes maintenance, optimizing your returns.  Jobsite drilling drives are backed by industry leading warranty and factory support.

Features

  • Compact high torque planetary gearbox
  • Eaton motor with integrated PRV eliminates the need for bulky valve blocks and reduces potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • 5 year gear box and 3 year motor warranty / lifetime shaft pull-out warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a Screw Anchor Drive with the addition of our patented ‘Anti Kickback Valve’ (ECV)

 PRINTABLE PRODUCT PAGE (PDF)

Compatible auger bits here.
SPECS

Made In The USA!


Drilling Drive Specifications

DESCRIPTION

3DSS

4DSS

 4DDS
TORQUE (FT-LBS @ 3000 PSI 2,829 3,275 3,583
MAX TORQUE FT-LBS @ 3500 PSI 3,300 3,821 4,180
RECOMMENDED FLOW (GPM) 10-30 10-30 10-36
MOTOR TYPE EATON EATON EATON
MAX PRESSURE – DO NOT EXCEED 3500 PSI @ 16 GPM 3500 PSI @ 16 GPM 3500 PSI
@ 27 GPM
MAX FLOW – DO NOT EXCEED 30 GPM @ 1800 PSI 30 GPM @ 1800 PSI 42 GPM
@ 3100 PSI
MAX HORSE POWER 34 34 55
PRESSURE RELIEF VALVE N/A N/A INCLUDED
STANDARD OUTPUT SHAFT 2″ HEX 2″ HEX 2″ HEX
RECOMMENDED AUGER A4 / RC4 A4 / RC4 A4 / RC4
MAX DRILLING DIAMETER

CLAY/SHALE)*

 24″ 24″ 24″
MAX DRILLING DIAMETER
(EARTH)*		 30″ 30″ 40″
WEIGHT (LBS) 123 125 180
OVERALL LENGTH (IN) 25.9″ 25.9″ 29″
DIAMETER (IN) 9.4″ 9.4″ 9.4″

(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only
